NEW - PRODUCTS - INFORMATIONAttaching tape to the edge of pocket pouches with

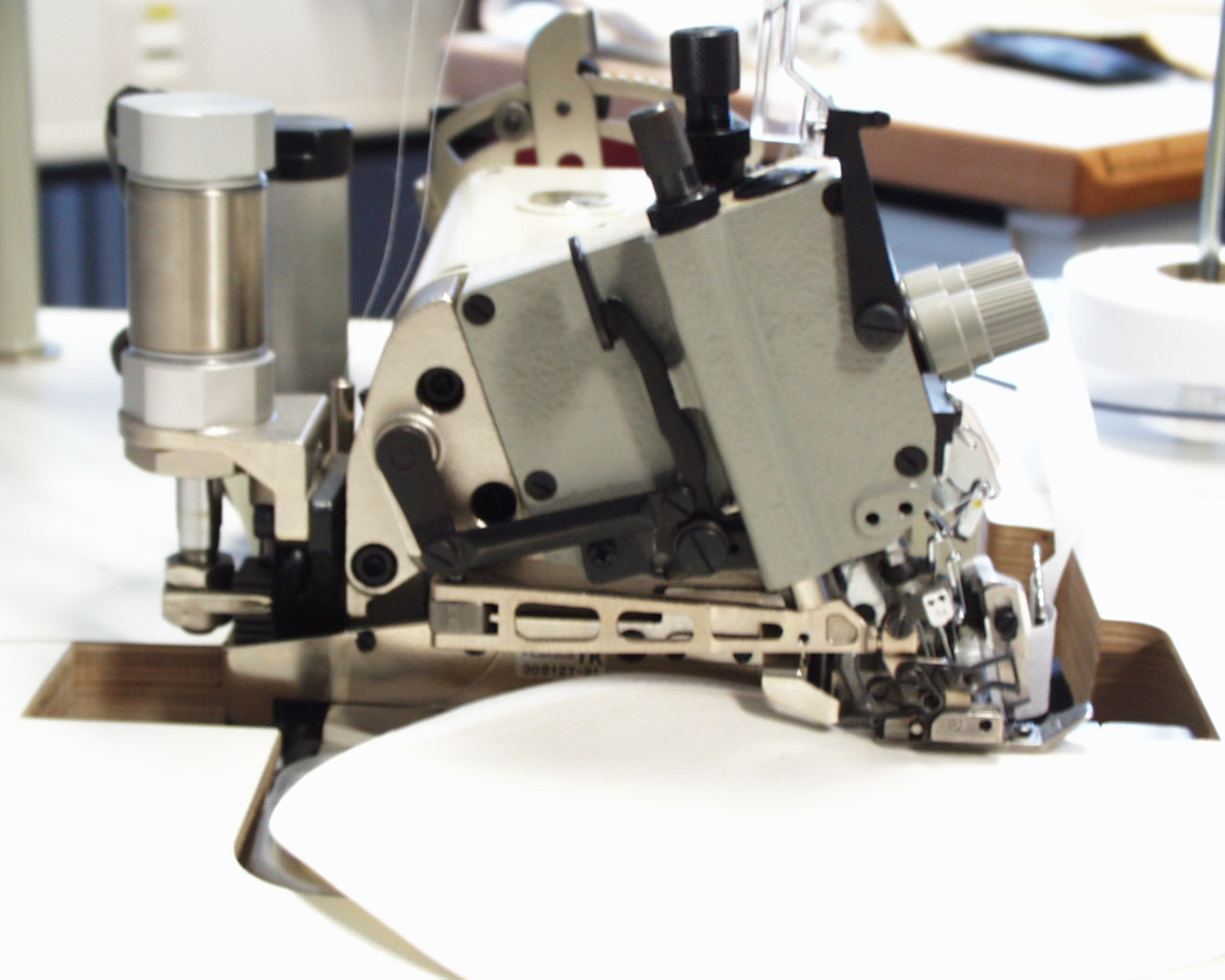

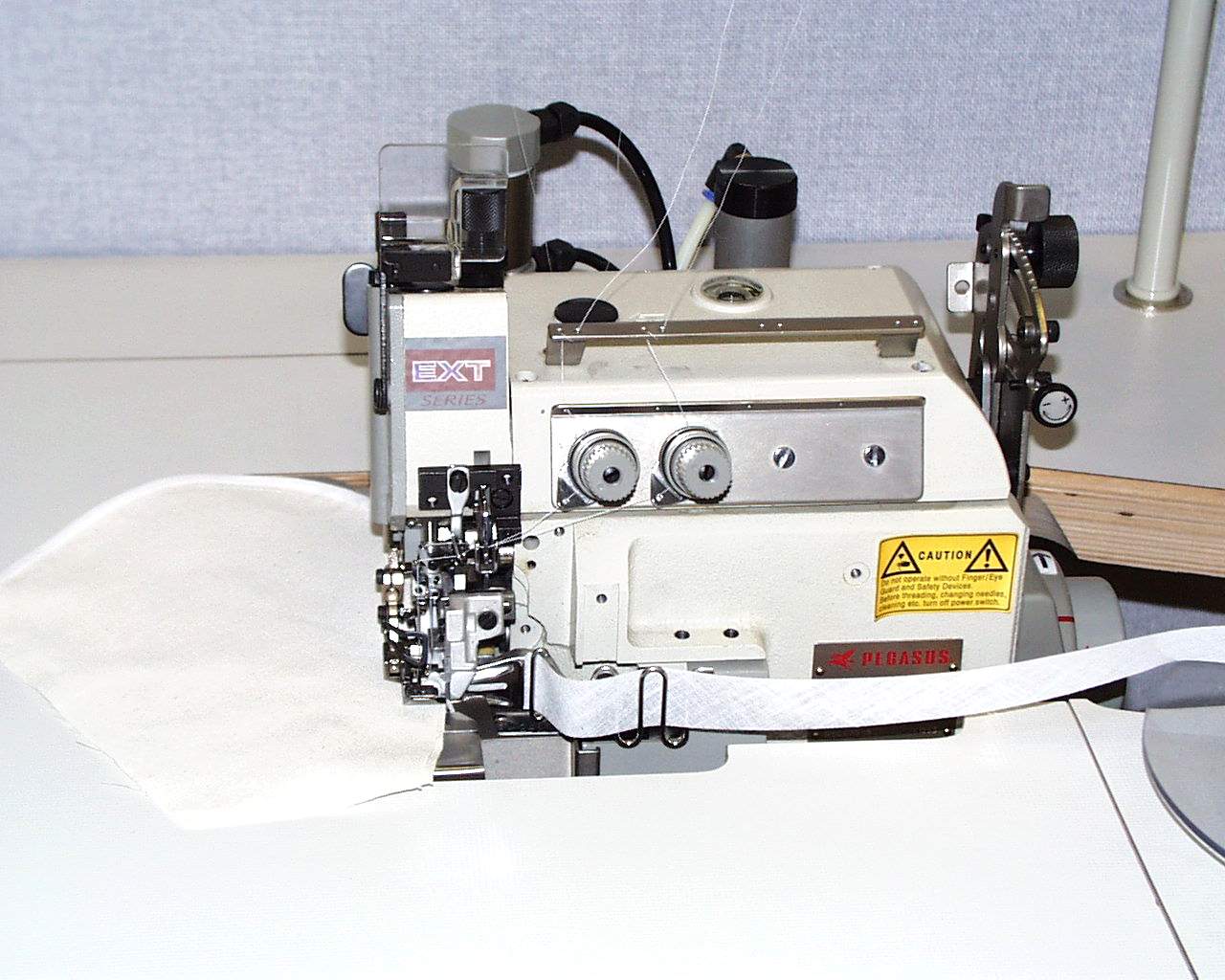

EXT2242-52P2/083-5x24/Y12532-needle double chain stitch machine with variable top feed behind the needles. Needle distance is 5 mm. The needle plate and the presser foot are with a groove to adopt the folder. The variable top feed ensures perfect transport of the tape and the material. This way the quality of the finished article is improved. The machine is, in case of …P2/, equipped with a folder. The standard

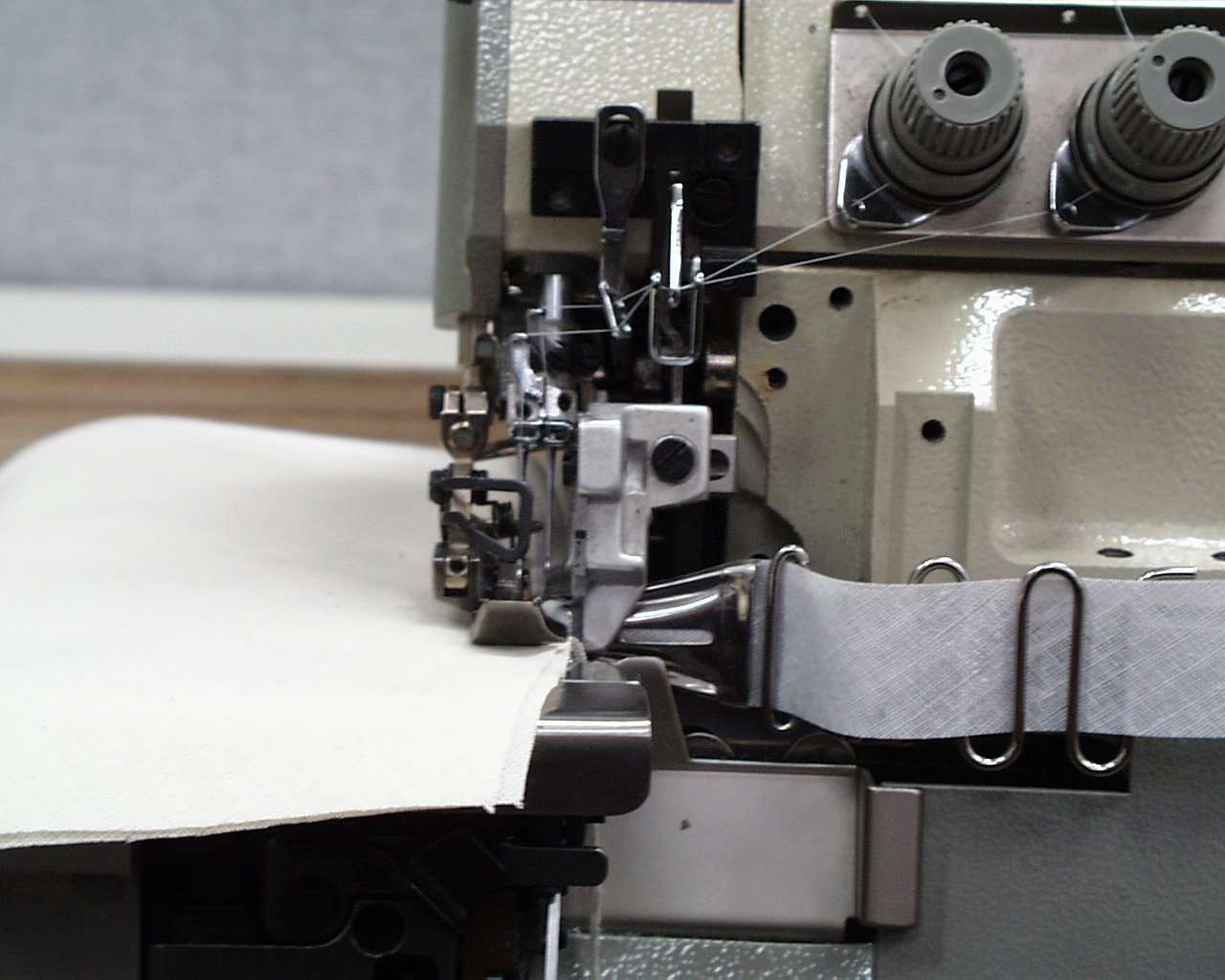

folder has a width of 24, 28 or 32 mm and is positioned between casing
and knife. Top and bottom edge are always folded under: |
|
 |
 |
| standard type of folding | by removing the left needle, it can be used as single needle |
 |
|
Technical specifications:
| Needles: | 2 |
| Threads: | 4 |
| Needle distance: | 5 mm |
| Stitch length: | 0,9 - 4,5 |
| Differential ratio: | 0,6 - 1,3 |
| Presser foot lift: | 5,5 mm |
| max. speed: | 7000 rpm |
| 24 mm | 28 mm | 32 mm |
| 208 390 | 208 389 | 208 757 |
 EXT2242-52P2/083-5x24/Y1253 |
 gauge parts and rear top feed dog |
 equipped with pneumatic tape cutter |
 folder between casing and knife |
