New versatile subclass -01G for W500 and W600 -series

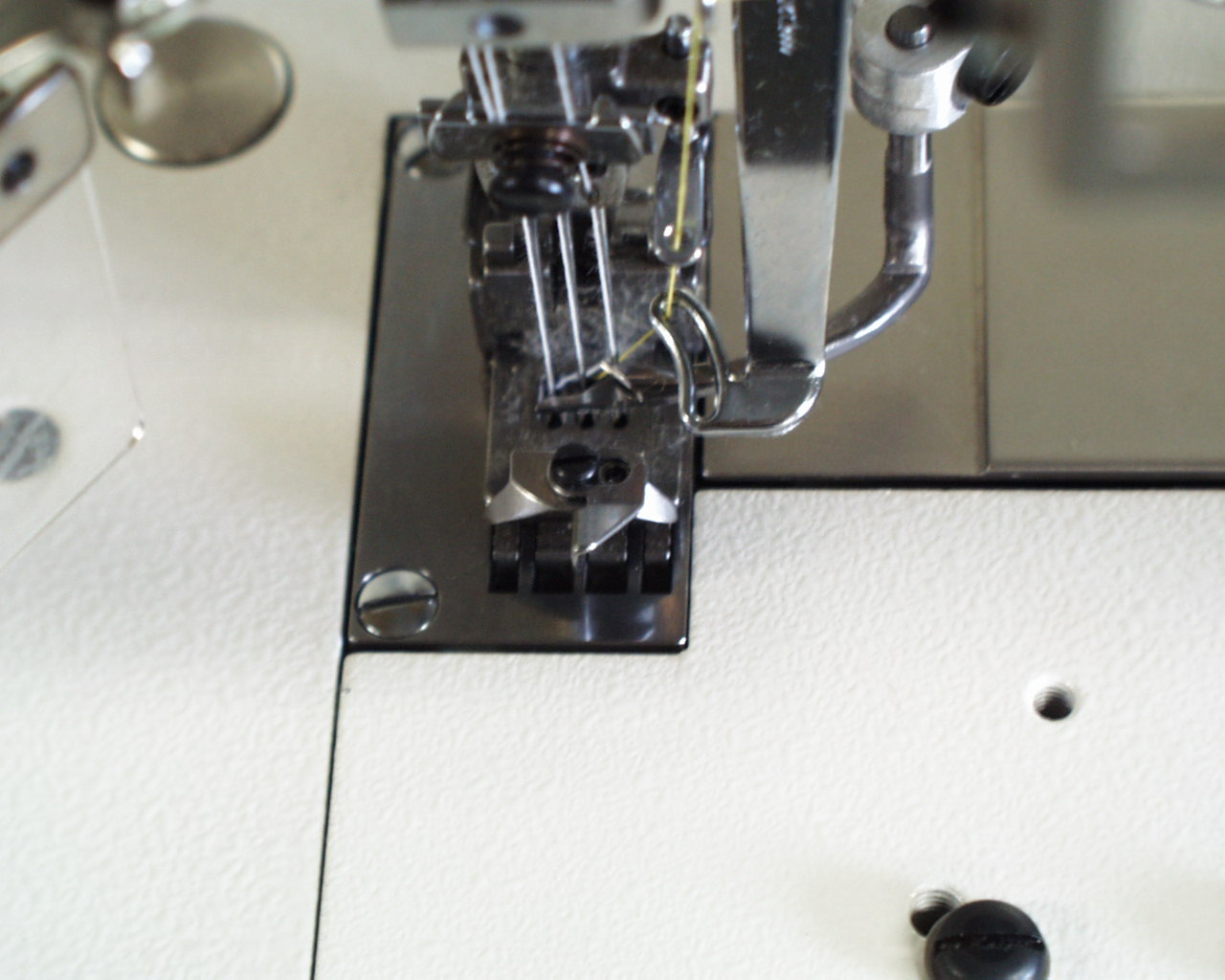

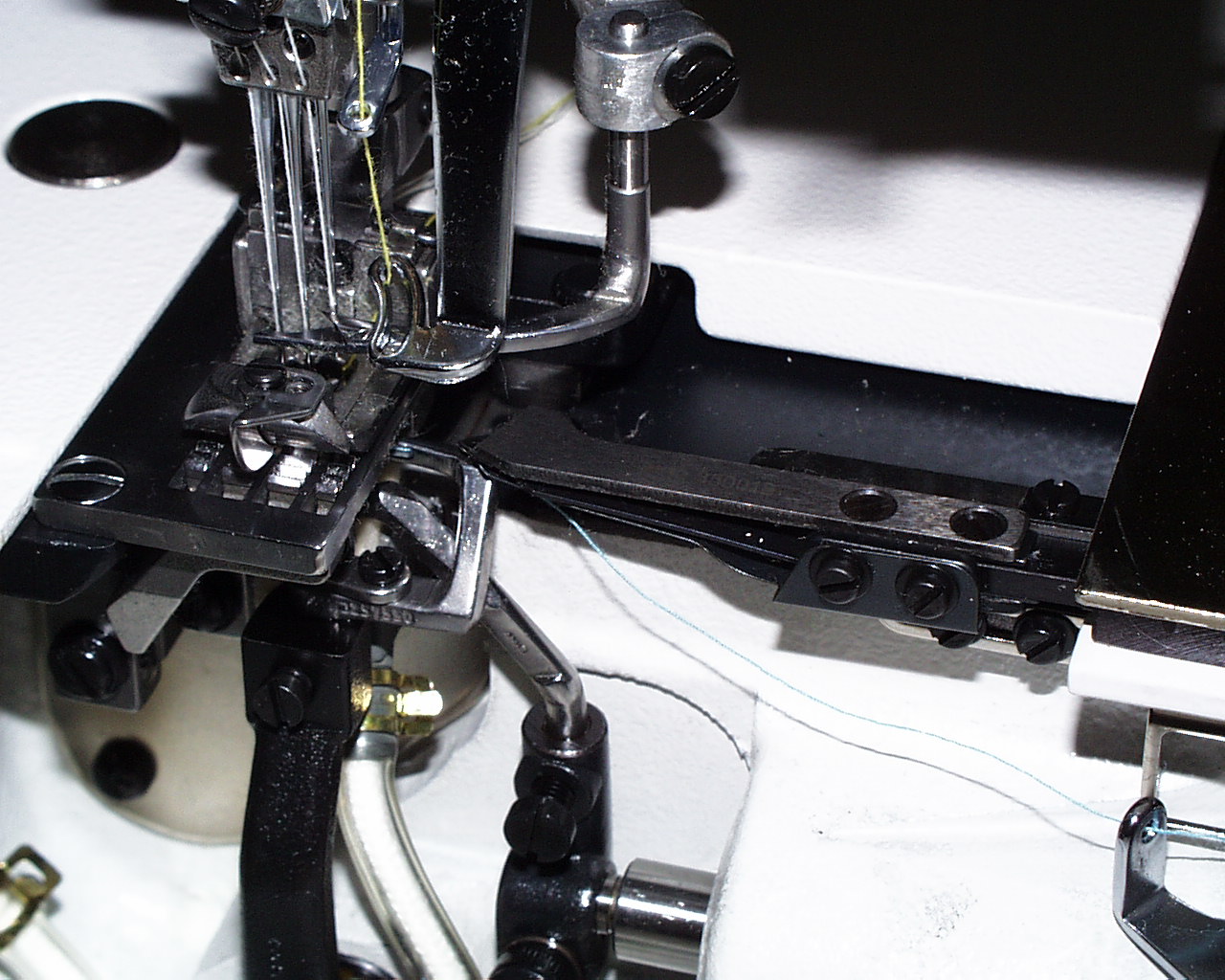

To provide more flexibility and versatility with this machine and to make it suitable for several applications, the subclass -01G includes the guides for -03 and -08 applications and the presser foot is also suitable for all 3 applications, compensating presser foot like -01/-08 with the adjustable guide on the presser foot from -03G subclass.

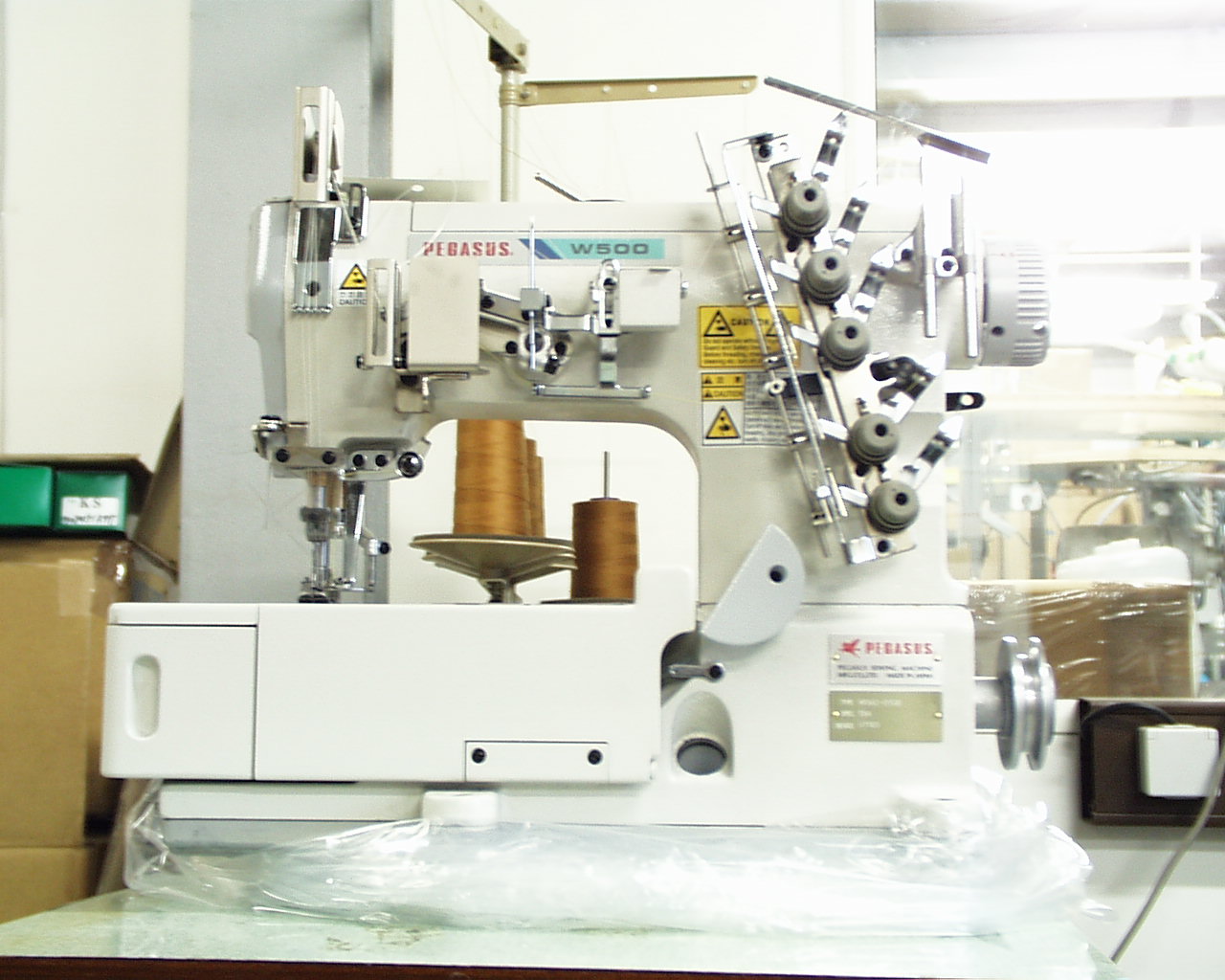

W562-01GBx356/UT
W664-01GBx356/UT

Versatile applications of -01G:

used as -01 for joining 2 pieces of fabric, like gusset seam or similar

used as -03 for cover seaming of overlock seams on shoulder and sleeve seams of
T-Shirts, Sweatshirts and similar articles

used as -08 for hemming of sleeves and bottoms of shirts, underwear etc.

It is also possible:

to make above seams with or without top cover thread
to use 2 - needles instead of 3 - needles

Technical specifications:

Needles:	3
Threads:	5
Needle distance:	5,6 mm
Stitch length:	max. 4,4 mm
Differential ratio:	0,5 - 1,3
Presser foot lift:	5 mm
max. speed:	6000 rpm

W562-01GBx356/UT	gauge parts / presser foot

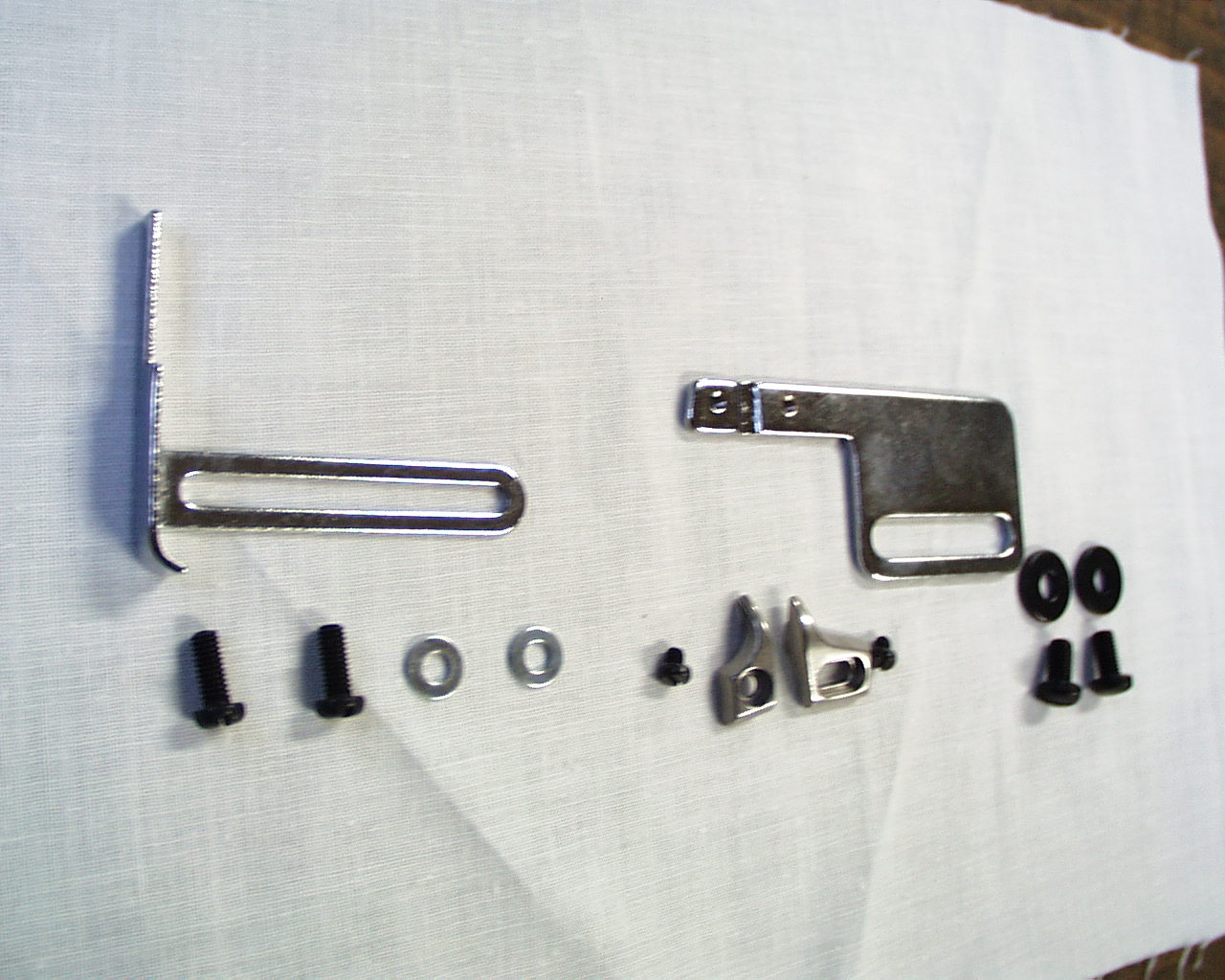

accessories , guides -08 and -03	thread trimmer UT
